LTE Tracker
Product description:
The LTE Tracker is a versatile LTE/OGN tracker targeting the drone market. The tracker supports transmission of own position via ADS-L/OGN on 868MHz, Remote ID on 2400MHz and ADS-L over LTE. There is an integrated 1090MHz RX module to receive the surrounding ADS-B traffic. The received OGN/ADS-L/FLARM/ADS-B/RID traffic is transmitted via LTE to ground networks to supplement their coverage.
The Bluetooth and Wifi interfaces distribute the traffic situation to locally attached displays or smartphone apps.
Next to the portable battery powered tracker there is a version of the tracker for fixed installation in a drone. Main difference are the smaller size and the missing display and control knob. A Mavlink compliant header with UART and CAN bus serves for communication.
Via the LTE link the ground traffic of the area is uplinked to the tracker and can be send via the WiFi and Bluetooth and the GDL90 protocol to local displays and avionic.
Please contact us for a demonstration!
Distinguishing Features:
- IGC File Format Compatibility: Supports data logging in IGC file format to a microSD card, ensuring comprehensive flight data records.
- Wide Input Voltage Range: Operates effectively with an input power range of 5-17V, accommodating various power sources and configurations.
- Extended Battery Life: Low power consumption enables up to 24 hours of continuous operation on the embedded Li-Ion battery, ideal for prolonged missions.
- Versatile Data Interfaces: Equipped with a range of data interfaces, including Wi-Fi, Bluetooth, and USB, supporting compatibility with major general aviation (GA) traffic awareness protocols (GDL90).
- The embedded ADS-B RX module provides supplementary data output and enhances traffic awareness capabilities.
- Visibility on Flightradar24: Ensures visibility and tracking on the widely used Flightradar24 platform, enhancing aircraft tracking and monitoring.
- Extends coverage of ground networks by feeding in otherwise invisible traffic via LTE.

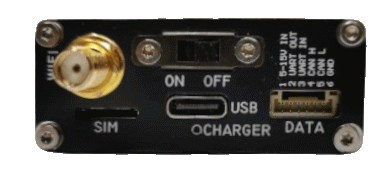

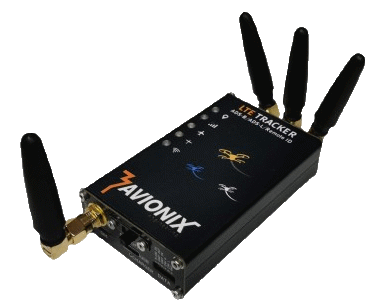

Visual representation:
AERO Tracker
Product description:
The AERO Tracker is a versatile LTE/OGN tracker targeting the small aircraft and the drone market. The tracker supports transmission of own position via ADS-L/OGN on 868MHz, Remote ID on 2400MHz and ADS-L over LTE. There is an integrated 1090MHz RX module to receive the surrounding ADS-B traffic. The received OGN/ADS-L/FLARM/ADS-B/RID traffic is transmitted via LTE to ground networks to supplement their coverage.
An integrated buzzer gives proximity warnings. The Bluetooth and Wifi interfaces distribute the traffic situation to locally attached displays or smartphone apps.
Next to the portable battery powered tracker there is a version of the tracker for fixed installation in a drone or aircraft. Main difference are the smaller size and the missing display and control knob. A Mavlink compliant header with UART and CAN bus serves for communication.
Please contact us for a demonstration!
Distinguishing Features:
- Multi-page OLED Display: Featuring a versatile multi-page OLED display for enhanced user interaction and information presentation.
- IGC File Format Compatibility: Supports IGC file format for seamless data logging to a microSD card, ensuring comprehensive flight data records.
- Wide Input Voltage Range: Operates effectively with an input power range of 5-17V, accommodating various power sources and configurations.
- Extended Battery Life: Low power consumption enables up to 24 hours of continuous operation on the embedded Li-Ion battery, ideal for prolonged missions.
- Versatile Data Interfaces: Equipped with a range of data interfaces, including Wi-Fi, Bluetooth, and USB, supporting compatibility with major general aviation (GA) traffic awareness protocols (GDL90).
- The embedded ADS-B RX module provides supplementary data output and enhances traffic awareness capabilities.
- Visibility on Flightradar24: Ensures visibility and tracking on the widely used Flightradar24 platform, enhancing aircraft tracking and monitoring.
- Extends coverage of ground networks by feeding in otherwise invisible traffic via LTE.
Visual representation:
